Professional X ray 50KW/65KW/80KW Manufacturers DR/ Hospital Equipment 80KW China Ceiling-mounted Digital Radiography System
Specifications
Ambient Conditions
|
Ambient temperature |
10℃～40℃ |
|
Relative humidity |
30％～75％ |
|
Atmospheric |
70～106kPa |
X-ray Generator
|
Output power |
50KW |
|
Frequency |
≧25KHZ |
|
Current |
10～630mA |
|
Voltage |
40～150KV |
|
mAs |
0.1～630mAs |
|
Exposure time |
1ms～6300ms |
|
APR program |
Equipped |
|
Intelligent protection system |
It has self-protection system. It will give an alarm and check fault code. |
X-ray Tube
|
Anode type |
Rotating Anode |
|
Focal Spot value |
0.6mm /1.2mm |
|
Maximum voltage |
150KV |
|
Revolving speed of anode |
2800rpm |
|
Inherent filtration |
1.0mmAl |
|
Anode heat storage capacity |
300kHU |
|
Maximum cooling rate of anode |
870W |
|
Housing heat storage capacity |
900kJ |
X-ray Detector(Flat Panel Detector)
|
Type |
Amorphous Silicon |
|
Scintillator |
Cesium Iodide |
|
Active Area |
17x17Inch(43cm*43cm) |
|
Active Pixel |
3072*3072 |
|
Pixel Pitch |
139um |
|
A/D Conversion |
16bits |
|
DQE |
≧70% |
|
Spatial Resolution |
36Lp/cm |
|
Acquisition time |
≤2S |
Collimator
|
Type |
Manual Collimator |
|
Max. Window |
440mm×440mm（SID=100cm） |
|
Lamp |
AC/DC24V、5W |
|
Lamp timer |
Automatic illumination with timer for lamp(30S) |
|
Inherent filtration |
1.0mmAl |
|
Illuminant |
LED |
Grid
|
Densities |
40LP/CM |
|
Ratios |
10:1 |
|
Size |
18”×18” |
|
Focal distance |
130cm |
Movement
|

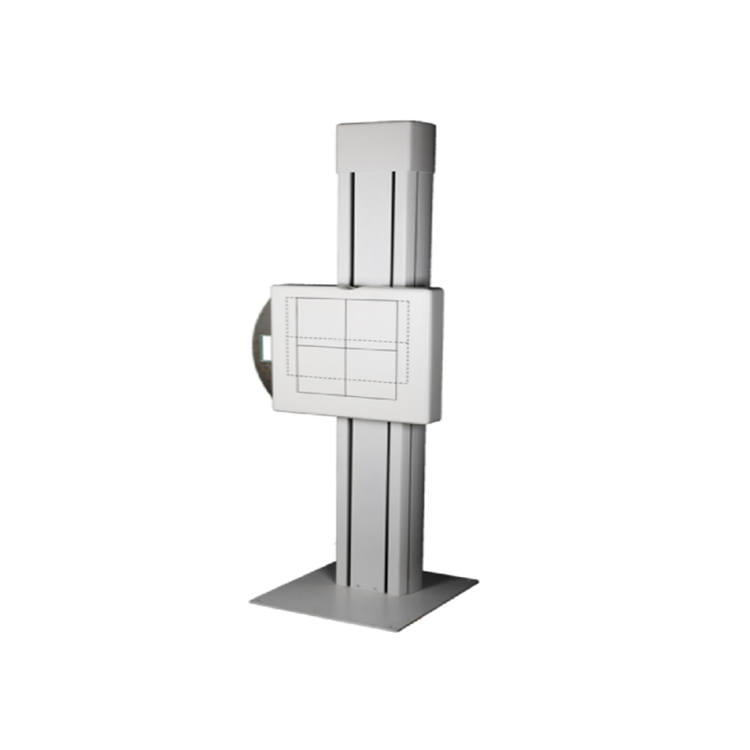

Chest stand |
|
|
Detector lift range |
1150mm |
|
Minimum distance from the center of the Bucky to ground |
460mm |
|

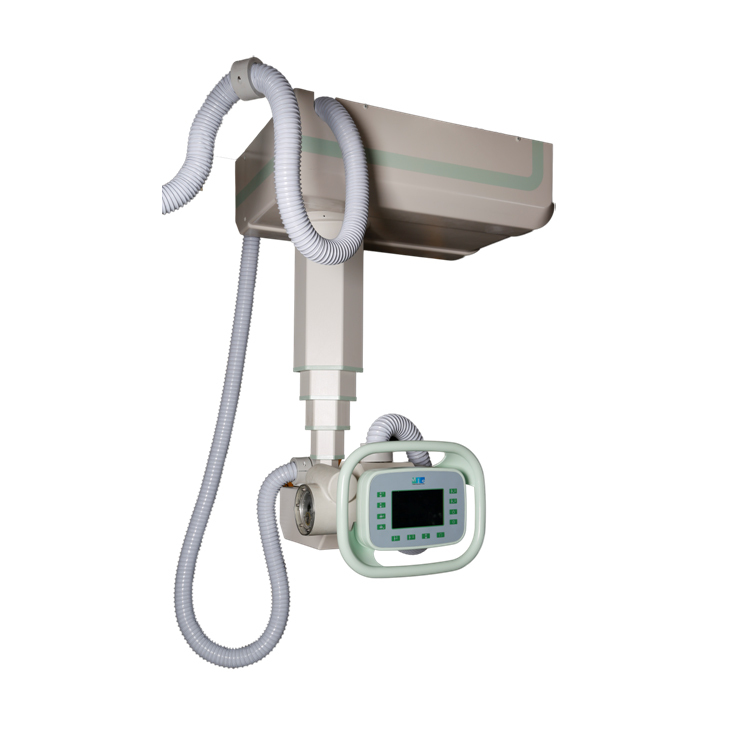

Tube stand |
|
|
Ceiling-mounted column telescope range |
1450mm |
|
SID moving range |
1000（basic point）～1800mm ≤±5mm |
|
Ceiling-mounted column lateral moving range |
1800mm |
|
Tube moving range around vertical axis |
±180° |
|
Tube moving range around horizontal axis |
±90° |
|

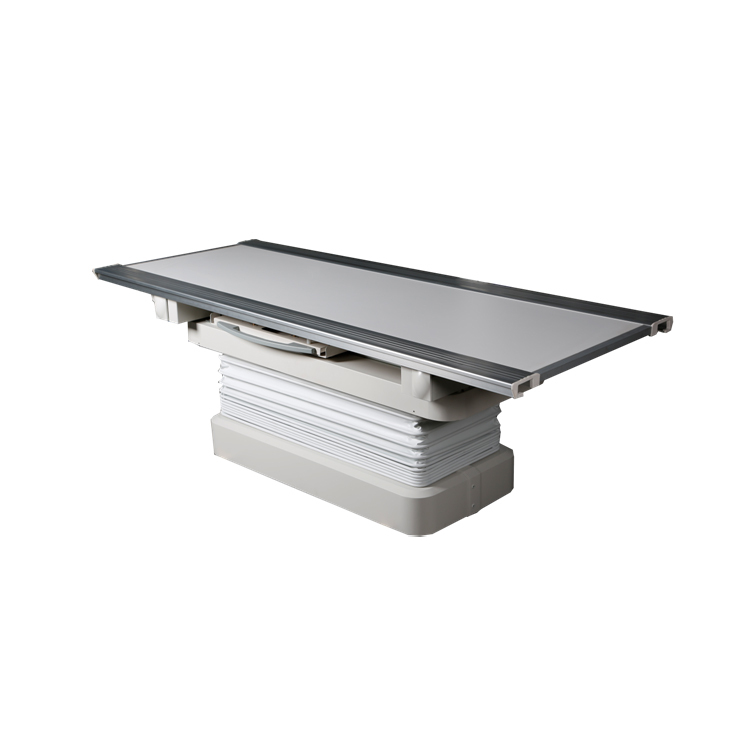

Table |
|
|
Dimensions of tabletop |
2000mm*828mm |
|
Lengthwise movement |
500mm |
|
Broadwise movement |
125mm |
Workstation
|
Monitor |
24’’ LCD |
|
CPU |
≥2.0GHz |
|
Memory |
≥2GB |
|
HDD |
≥500GB |
|
DICOM3.0 |
Query for integration with any PACS |
|
Functions |
Import/export function |
|
|
Image info |
|
|
Management of patient info |
|
|
Post processing |
|
|
Measurement etc. |
