Model Parameter |
MCDX320 |
MCDX500 |
MCDX650 |
|
Power |
32kW |
50kW |
65kW |
|
Power supply |
50HZ、60HZ, wire diameter >4mm2, internal resistance<0.5Ω; 20/32/50kW(220V /380V available)，65kW(only 380V). |
||
|
mA |
10-400 |
10-630 |
10-800 |
|
mAS |
0.4--320 |
0.4--1000 |
0.4--1000 |
|
KV |
40—125kV stepping by 1kV |
40—150kV stepping by 1kV |
|
|
Exposure time |
0.003~6.3s(34 steps)adjustment：Increased /reduced by 1mS each time |
||
|
Focus size |
Default 0.6*0.6mm/1.2*1.2mm dual focus, Toshiba (optional) |
||
|
Anode rotating speed/Anode heat capacity |
2800prm/1300kHU
|
8400prm/1300kHU |
|
|
Generator frequency |
30kHZ/400kHZ(optional) |
||
|
Radiography table(W*L cm) |
73*200cm, Move 40cm left and right, 20cm back and forth |
||
2.Products Show
|
Item |
1417 |
1717 |
|

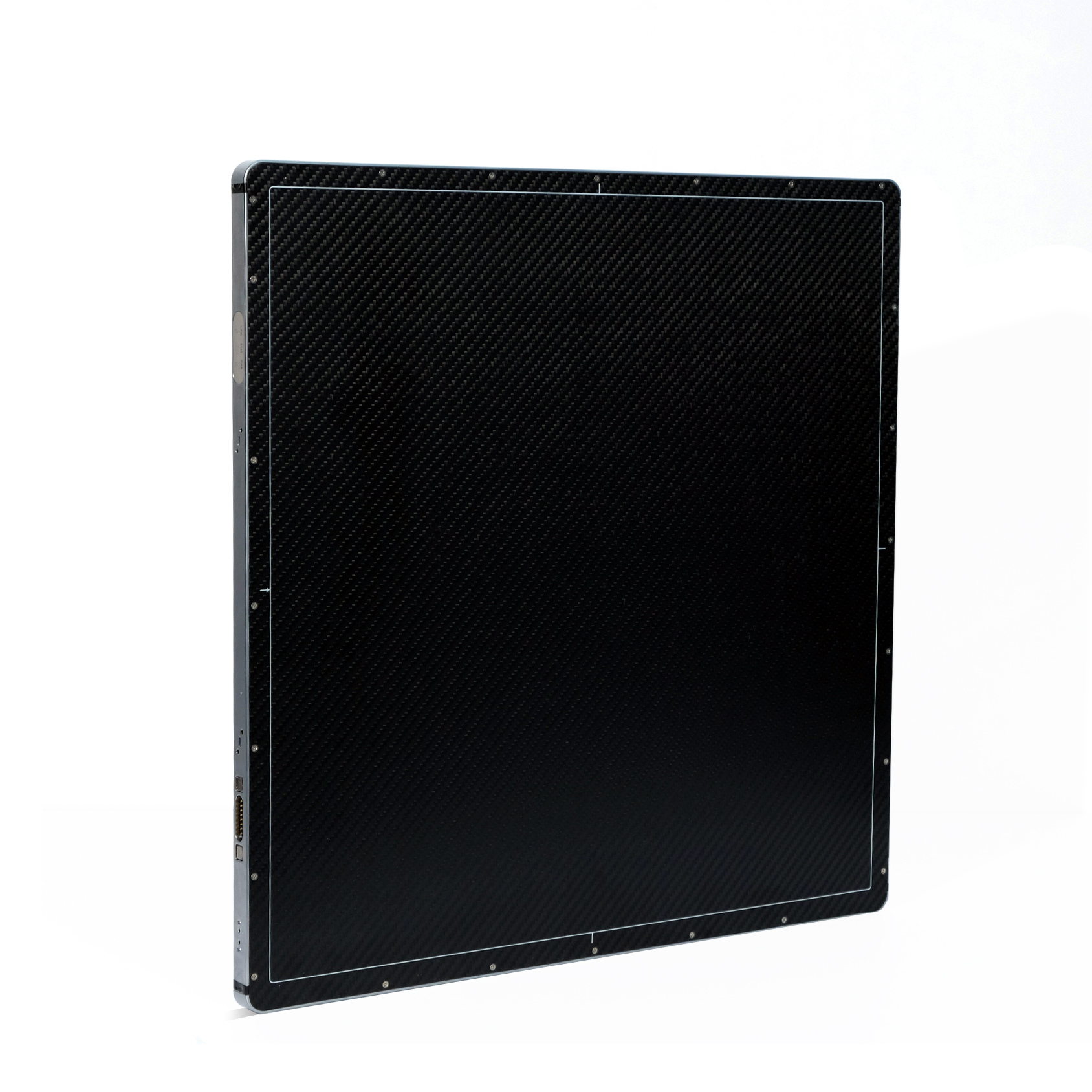

Flat panel detector type |
Direct imaging of cesium iodide amorphous silicon（CsI+a-si+TFT） |
|
|
Imaging area |
14*17 inches |
17*17 inches |
|
Pixel resolution |
2560*3072 |
3072*3072 |
|
Pixel size |
140um |
140um |
|
Imaging time |
<5 seconds |
<5 seconds |
|
A/D conversion |
16bits |
16bits |
|
Spatial resolution |
3.6lp/mm |
3.6lp/mm |
|
Flat panel detector size |
383*460*15mm |
460*460*15mm |
|
communication method |
Wired, wireless (optional) |
Wired, wireless (optional) |
|
Imaging software |
Professional medical software; Many languages optional; logos can be customized if order 3 units or more at a time. |
|
|
Computer configuration |
Intel i5 processor; 8G memory, 2G discrete graphics card, 128G solid-state hard drive + 1TB mechanical hard drive, PCI-E and Ethernet dual Gigabit network cable interface, R232 interface; 22.5-inch professional small dot pitch display; (optional laptop) |
|
