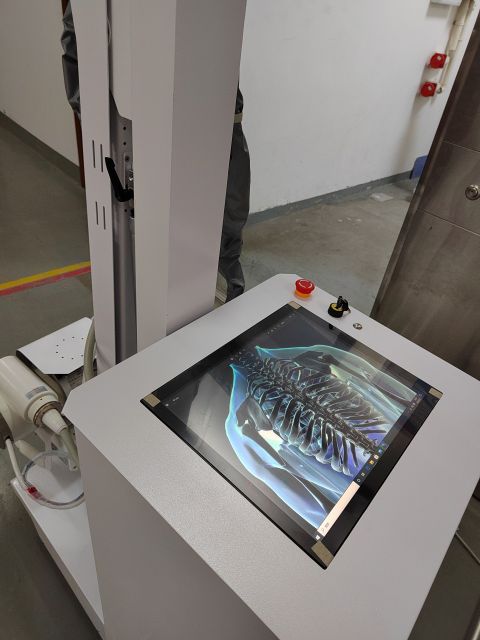

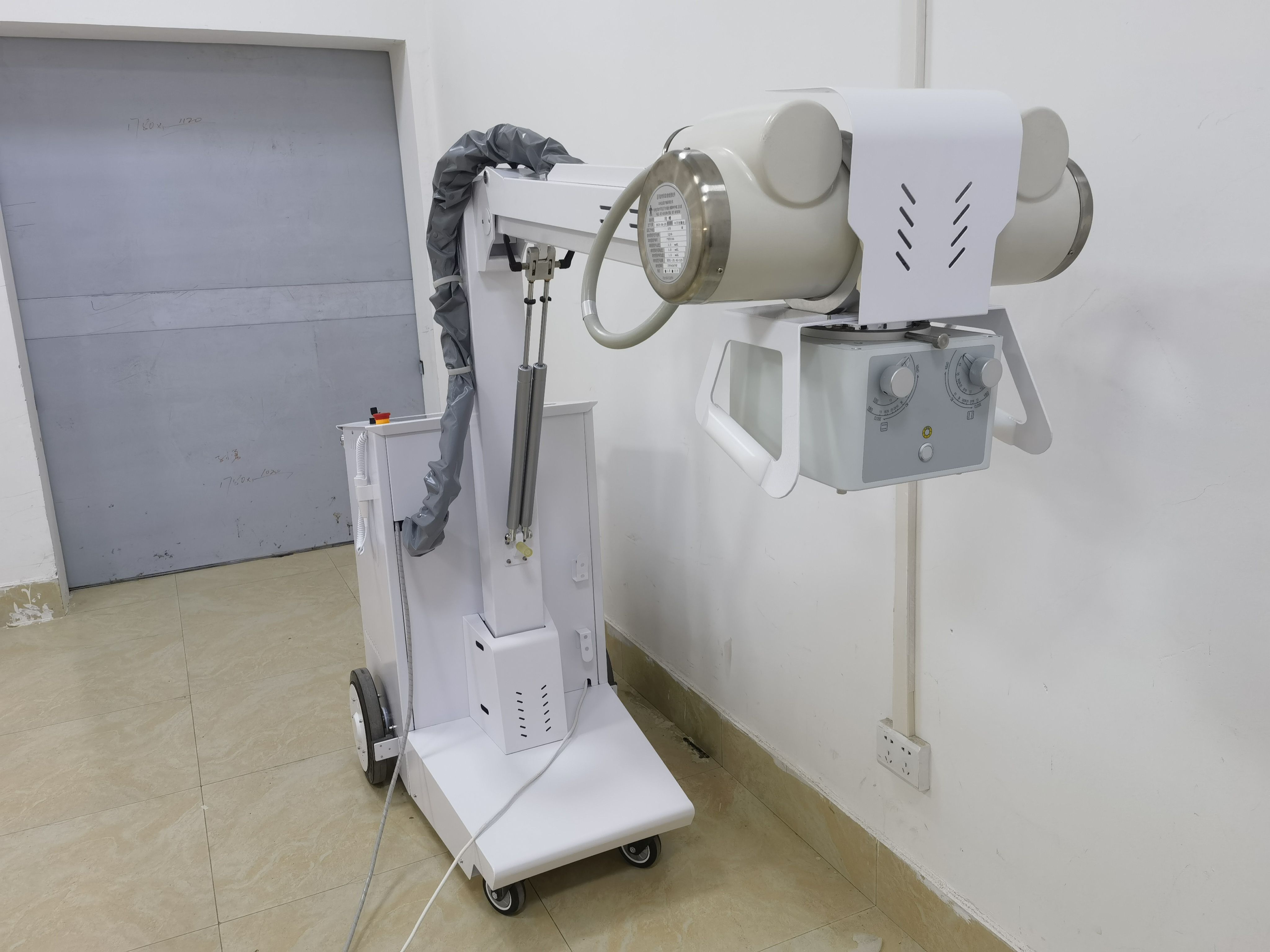

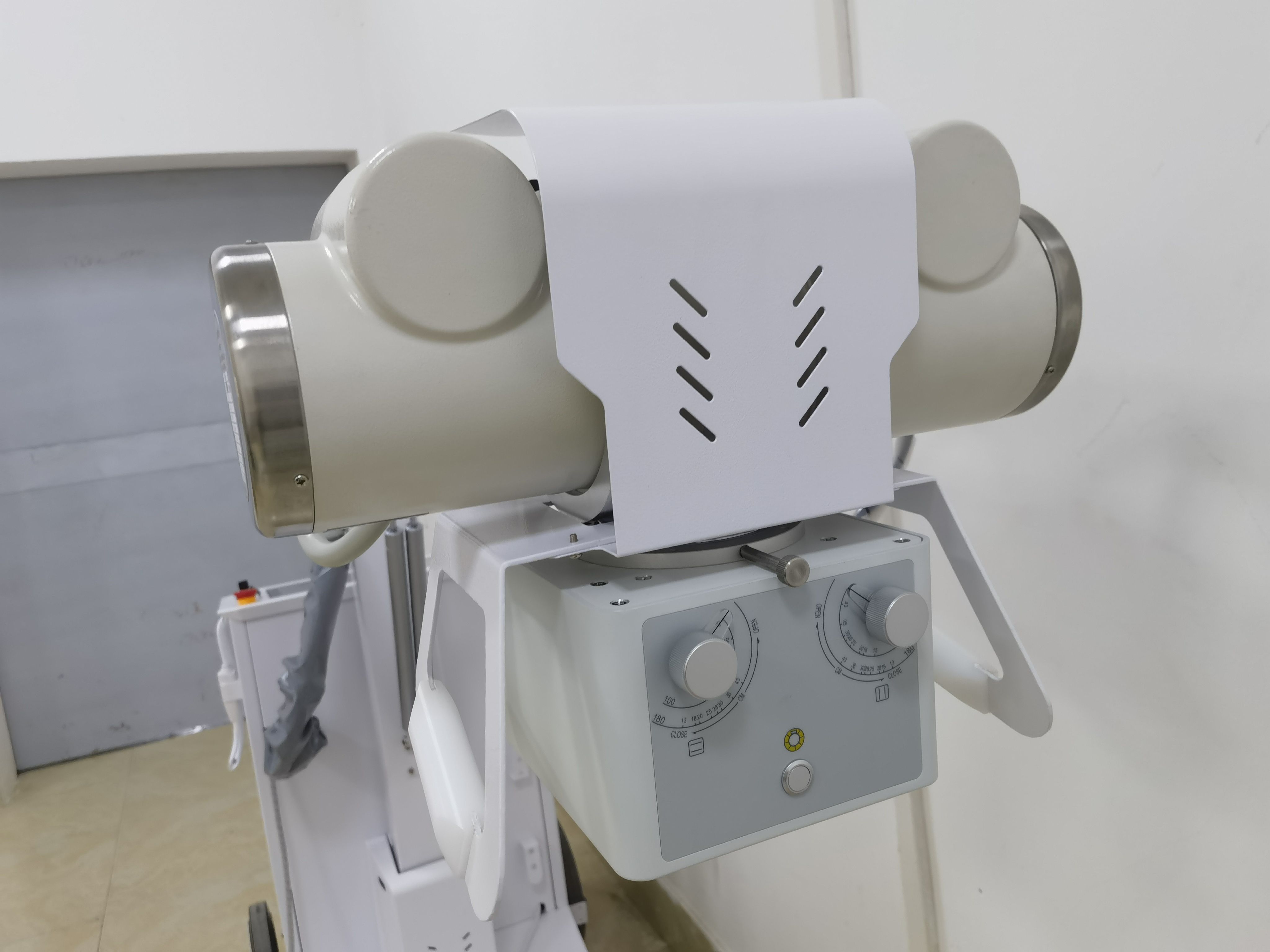

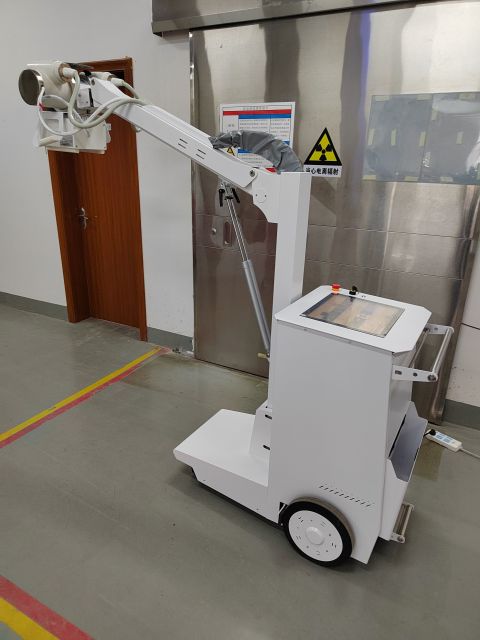

MC32DR

MC32DR The mobile DR is small in size&light in weight,and the device can reachany place where it is needed.It is suitable for isolating the ward,especially the ICU,Emergency, Isolation area intensive bedside filming to avoid patient movement.

GET A QUOTE

Add to Quote List Browse the list

Desciption

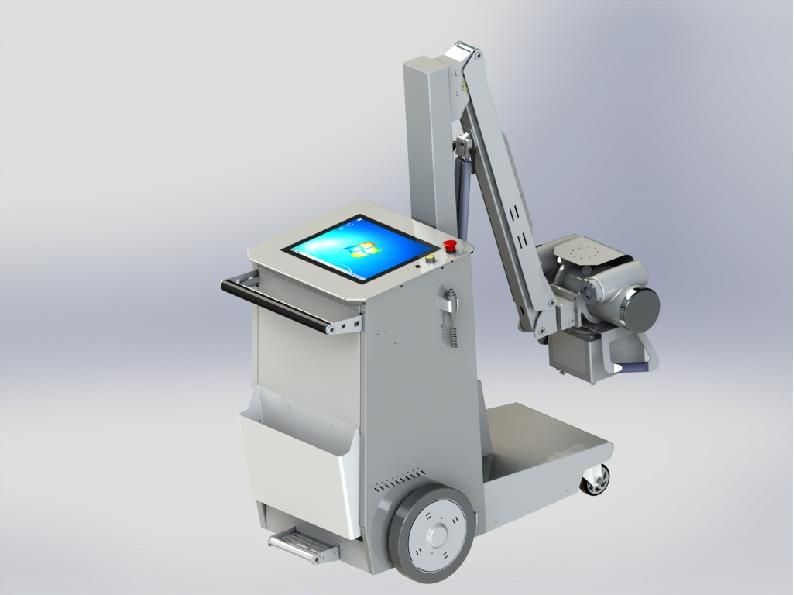

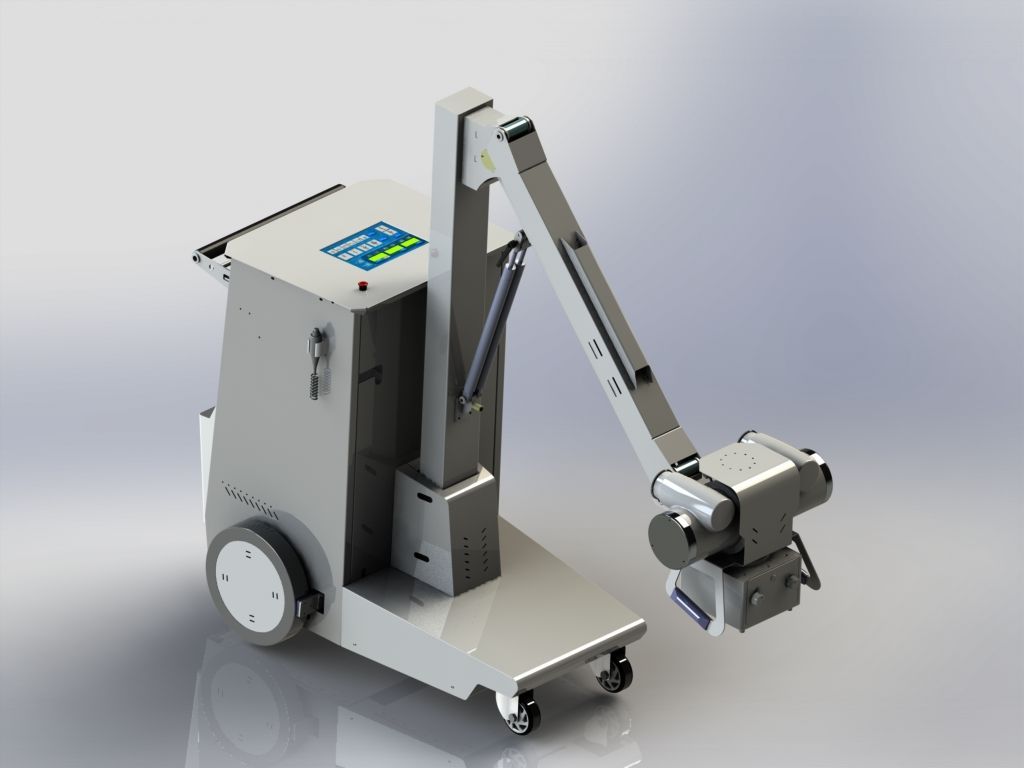

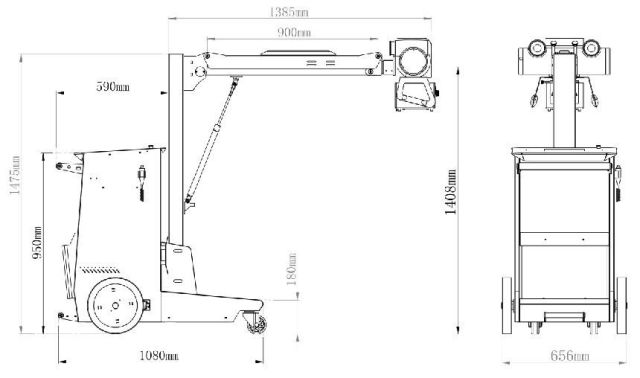

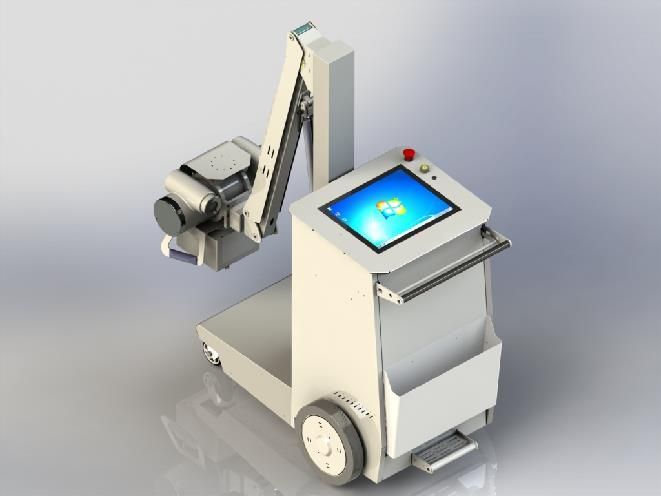

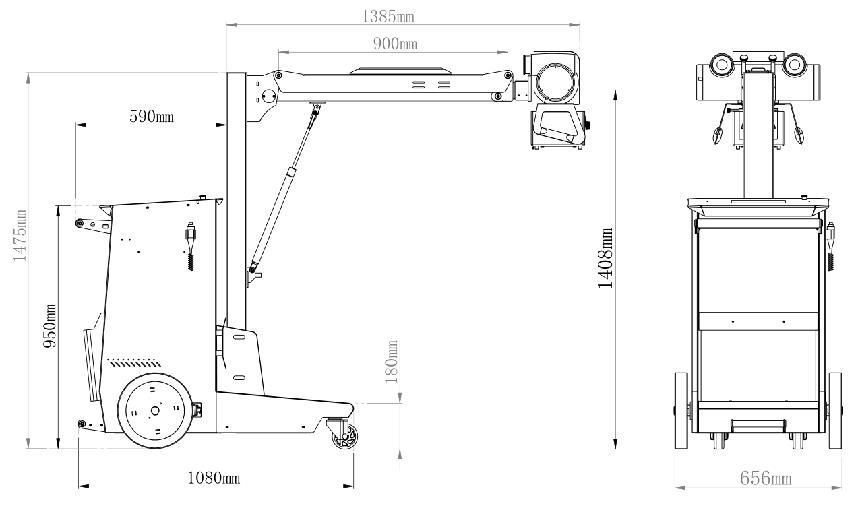

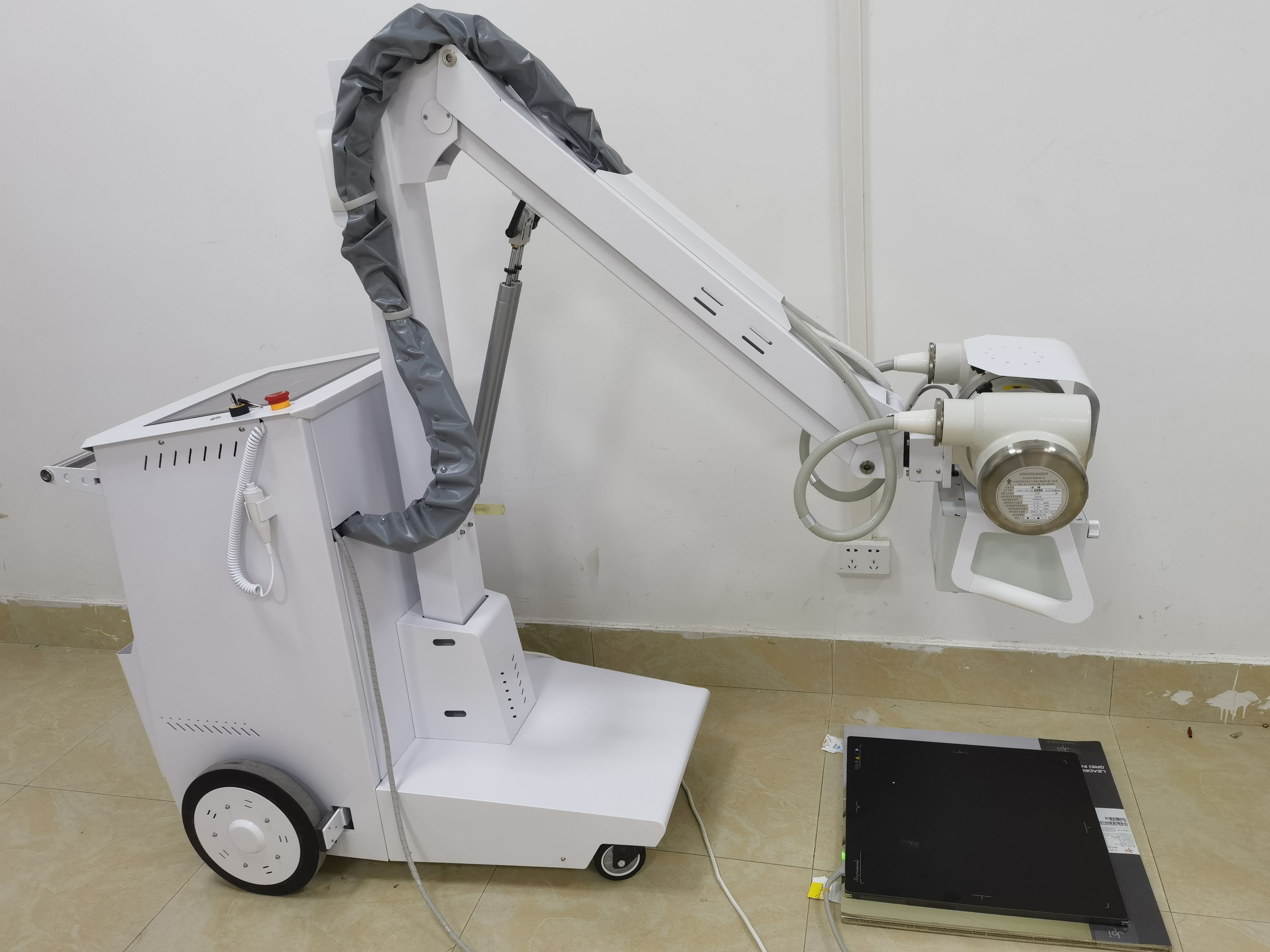

Machine display

X ray machine

★ Power:32kW
★ Voltage: AC220V ± 10%
★ kV Range: 40～125kV
★ mA Range: 10～400mA
★ mAs Range: 0.32-400mAs
★ Working Frequency: ≥100kHz
★ Exposure time: 0.002S～6.3S
★ Focus: 1.0 mm / 2.0 mm

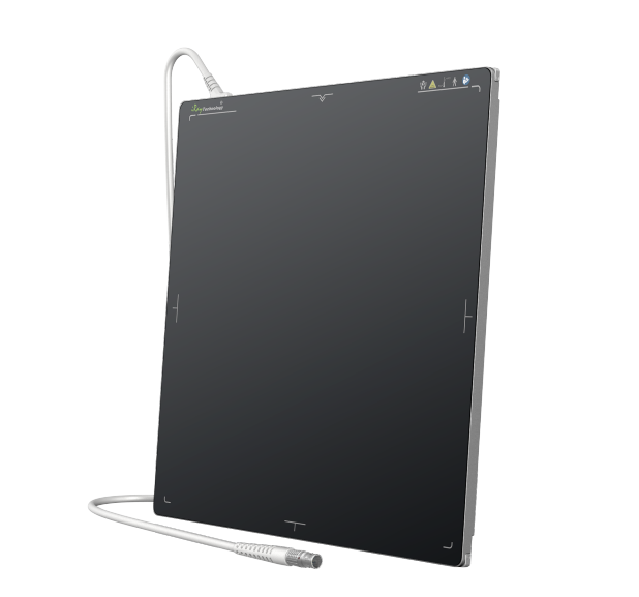

Detector

★ Dimension :460mmx460mmx15mm
★ X-ray Energy: 40-150kV
★ Scintillator: CsI:Tl
★ Pixel Size: 139um
★ Fill Factor: 70%
★ Effective Array: 3072x3072
★ Effective Area (H x V): 427mm×427mm
★ Spatial Resolution: Min. 3.4 lp/mm
★ Image Transfer: Gigabit Ethernet
