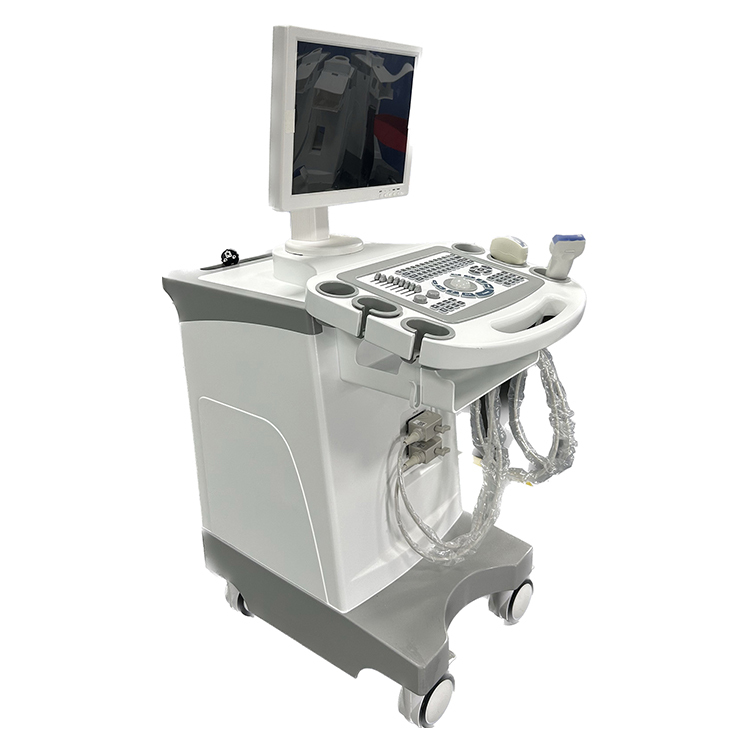

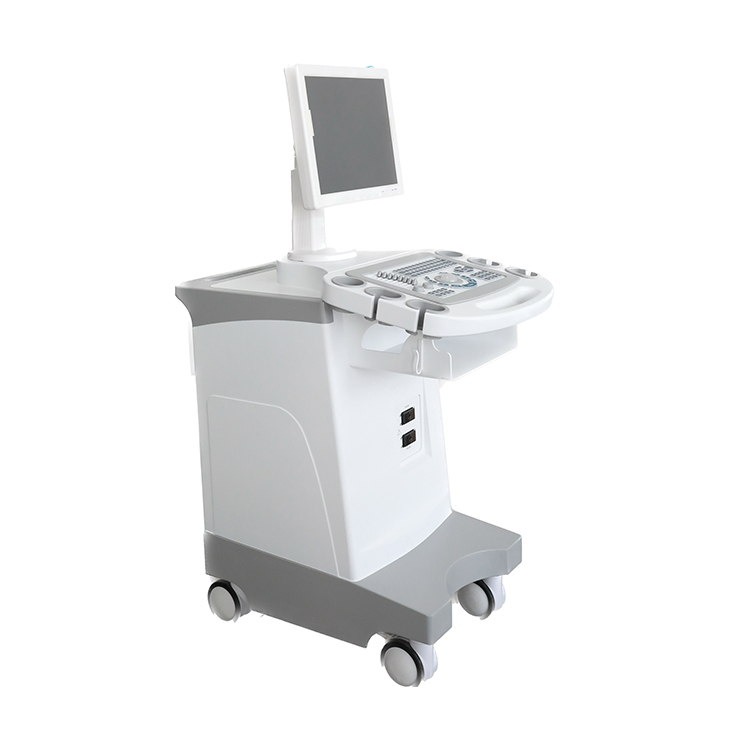

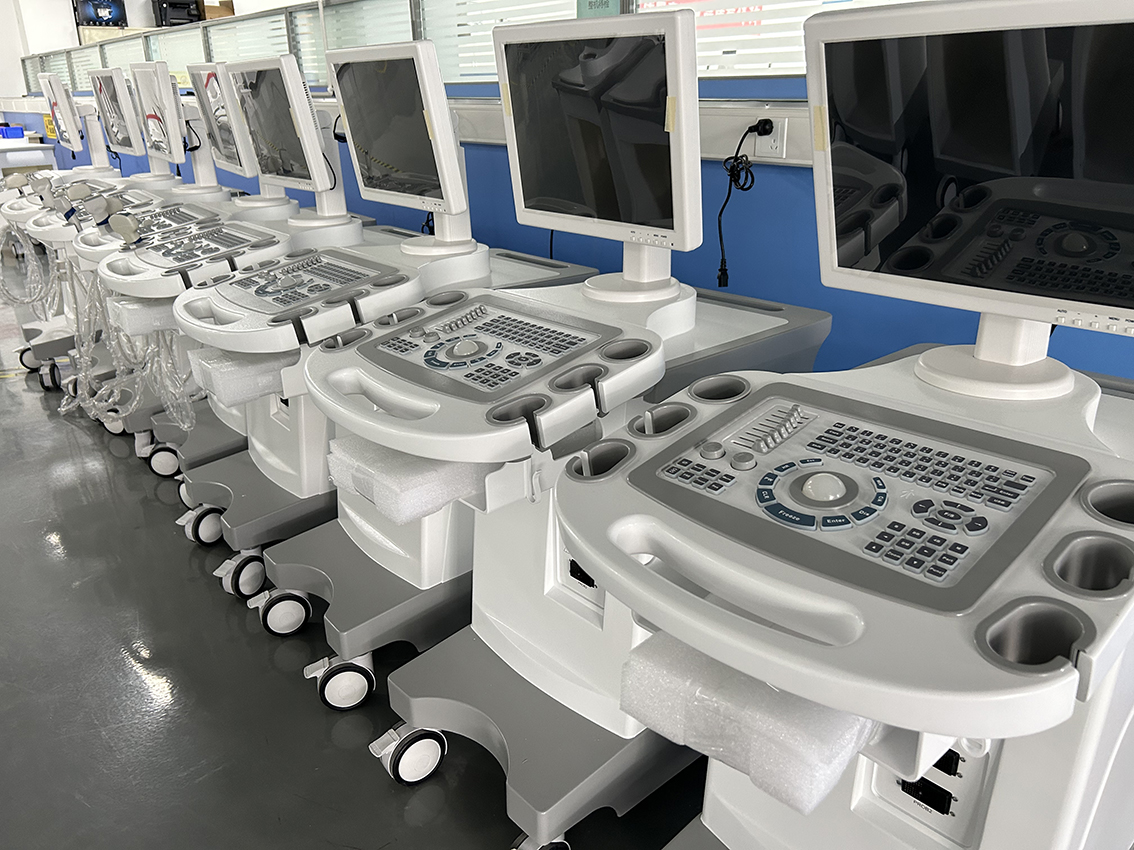

Excellent Performance 15 inch LED Convex+linear+Transvaginal Probe Trolley Ultrasound Applicable In Hospital Trolley Ultrasound
Displayer：15 inch LED
Optional Probe：Convex、Trans-vaginal、Linear
Display modes：B、B/B、4B、B+M、M
Display magnification：
Convex probe， B-mode， real-time status：x0.8， ×1.0， ×1.2， ×1.5， ×1.8， ×2.0；
×1.8/×2.0 status：the depth display can be enhanced by the depth shift key；
Trans-vaginal probe：x0.8， ×1.0， ×1.2， ×1.5
M-Speed：M-Scan has 8 speeds to choose from.
Chinese-English conversion：The interface can be converted to Chinese and English.
Local zoom：magnify 2 times of real time image
Dynamic Range：0~120dB ajustable
Focus Position：1，2，3 and 4-segments dynamic electron focusing
Focus shift is available at one or two segment focus time
Receive：Receive real-time dynamic point-by-point focus.
Image Pre-processing：Variable aperture，dynamic apodization，Dynamic filter， etc.
Image Post-processing：Processing：8 γ correction，frame correlation，point correlation，line correlation，digital
filtering， digital edge enhancement and 16 pseudo color processing， etc.
Frequency Conversion：
Convex probe：2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
Variable frequency support high frequency probe ： frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0MHz/7.5MHz
Measuring Function：Distance，circumference，area (method of ellipse， method of loci)， volume， heart rate，
gestational weeks (BPD，GS，CRL，FL，HL，OFD，TTD，AC )， expected date of confinement and fetus weight，
etc.
Annotation Function：
hospital name， patient & rsquo’s name， age and gender
64 body marks (with probe &rsquo’s position)；
Full-screen character annotation； Real-time clock display
Puncture Guide：probe can display puncture guide line in B mode
Gain Control：8 segments TGC and overall gain can be adjusted respectively
Image Polarity：left and right flip， black and white flip， up and down flip
Capacity Cine Loop：real time display 256 consecutive images which are memorized successively
Image Playback：series playback or check one by one
Permanent Storage：
128 images

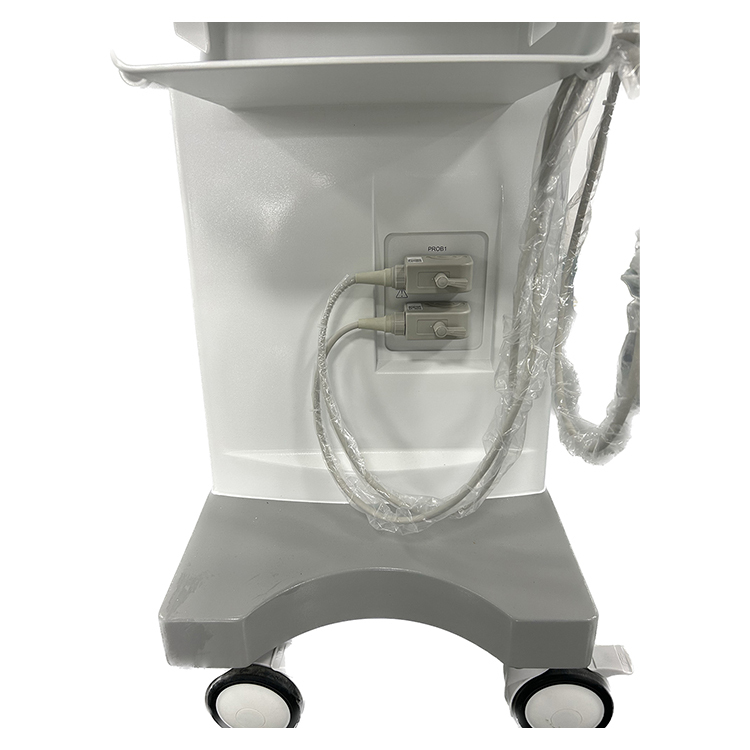

Output Interface：
SVGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation，etc
Offers storing images in USB flash disk
Input voltage：AC 100-240V， 50/60Hz

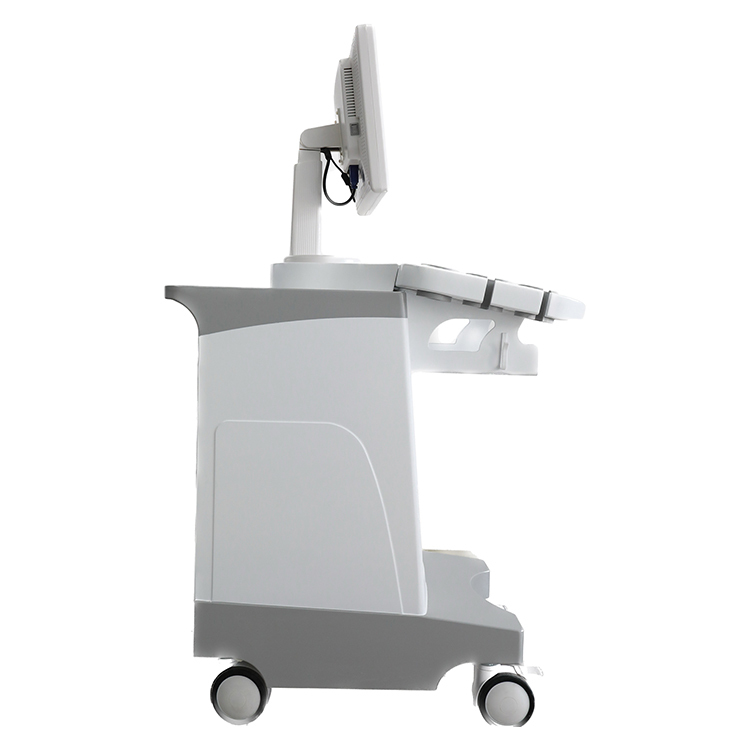

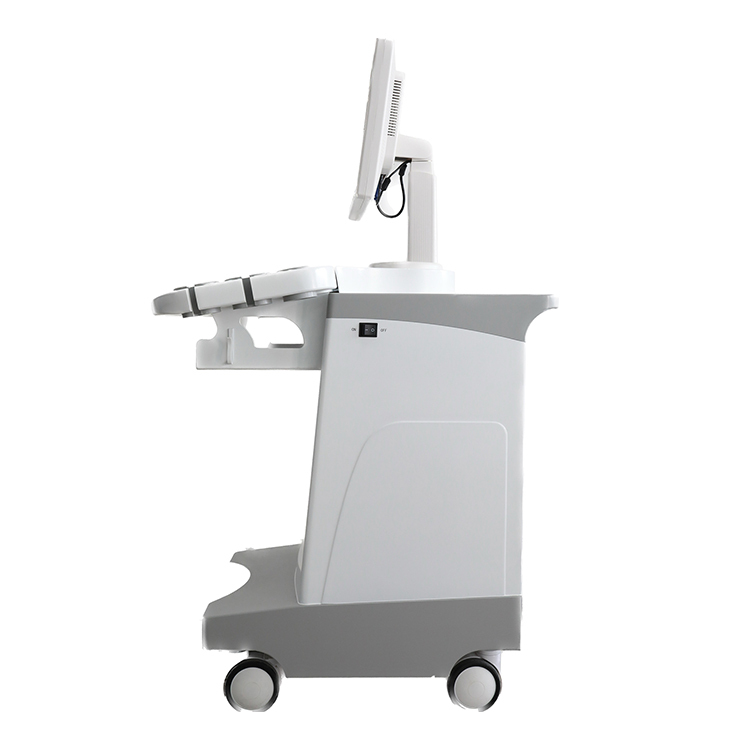

Appearance size：460mm×758mm×1205mmm(L×W×H)
Weight：≤ 18Kg
